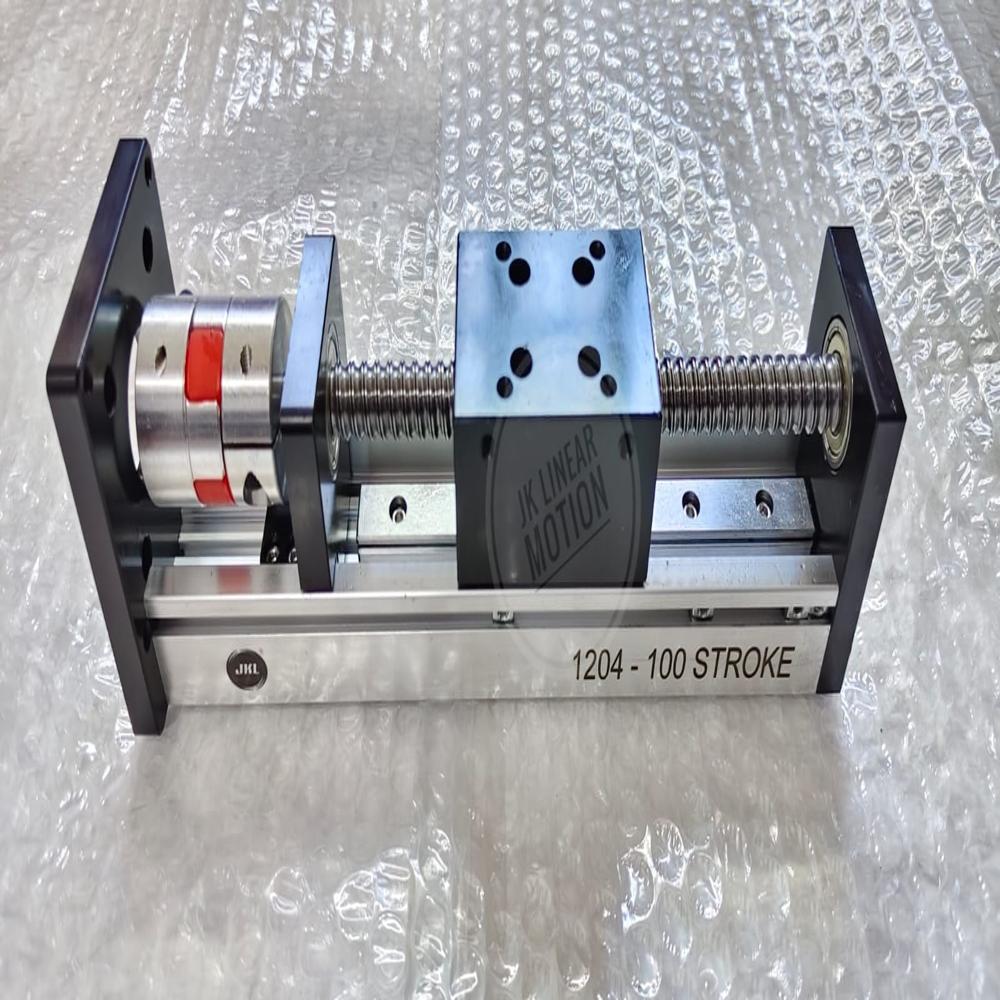

FSL 1204-100 STROKE WITHOUT MOTOR-JKL

FSL 1204-100 STROKE WITHOUT MOTOR-JKL Specification

Product Type
1

Connection
NEMA 23 Stepper Motor (57HS56-3004A-123) coupling support

Voltage
1 Milliampere (mA)

Application
1

Capacity
1 Kg

Classification
1204-100

Dimension (L*W*H)
1 Millimeter (mm)

Accuracy
High positioning accuracy with minimal backlash, typical repeatability 0.02mm gm

Pressure
Not applicable (Designed for precision motion, not for high-pressure fluid applications) kgf/m2

Material
1

Weight
1 Kilograms (kg)

Function
Linear motion actuation for precise positioning and automation applications

Size
1204-100 (12mm screw diameter, 4mm lead, 100mm stroke length)

Travel Speed
Up to 300 mm/s (depends on stepper motor driver rating)

Lubrication
Pre-lubricated ball screw for smooth operation

Application
CNC machines, 3D printers, automated testing, pick and place systems, robotics

Screw Type
Ball Screw

Load Capacity
Supports loads up to 15 kg (varies by speed and orientation)

Material
Aluminum body with steel ball screw

Drive Method
Stepper motor-driven with ball screw actuation

Stroke Length
100 mm

Drive Motor
NEMA 23 Stepper Motor, Model: 57HS56-3004A-123

Coupling Type
Flexible shaft coupling (included)

Mounting
Multi-position mounting holes on carriage and end supports

Protection
Dust-proof design (for general industrial environments)

FSL 1204-100 STROKE WITHOUT MOTOR-JKL Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Days

FSL 1204-100 STROKE WITHOUT MOTOR-JKL About

Discover the trending FSL 1204-100 WITH NEMA 23 (57HS56-3004A-123)JKL linear actuator, renowned for its superb accuracy and splendid engineering. Crafted with a pristine aluminum body and a robust steel ball screw, this select automation solution features a 100mm stroke length and NEMA 23 stepper motor, ensuring precision movement at an unbeatable price. Pre-lubricated for smooth operation, it supports loads up to 15 kg and boasts a dust-proof design-ideal for CNC machines, pick and place systems, and robotics. Enjoy flexible multi-position mounting and high repeatability for your sophisticated projects.

Versatile Application and User Suitability

The FSL 1204-100 WITH NEMA 23 (57HS56-3004A-123)JKL is engineered for industrial automation and precise linear actuation tasks. It's commonly used by manufacturers, automation specialists, and engineers in applications such as CNC machines, 3D printers, and robotics. The pristine aluminum actuator is ideally suited for metal, plastic, and composite surfaces, ensuring superb performance across laboratories, factories, and technical workshops where accuracy and durability are paramount.

Export Markets, Sale Price & Certifications

The FSL 1204-100 WITH NEMA 23 (57HS56-3004A-123)JKL is highly sought-after in global markets, especially across Europe, North America, and Asia. Products are dispatched from select FOB ports, ensuring streamlined transportation and express shipping to reduce lead time. Each unit comes with quality certifications, supporting buyer confidence. Its sale price offers substantial value for exporters and importers looking for industrial automation equipment meeting rigorous international standards.

FAQ's of FSL 1204-100 WITH NEMA 23 (57HS56-3004A-123)JKL:

Q: How does the FSL 1204-100 WITH NEMA 23 (57HS56-3004A-123)JKL ensure accurate linear motion?

A: This model features a precision ball screw mechanism with stepper motor actuation, designed to minimize backlash and maintain high repeatability, typically achieving positioning accuracy within 0.02mm.

Q: What applications are best suited for this linear actuator?

A: It's ideal for use in CNC machines, automated testing rigs, pick and place systems, 3D printers, and robotics, offering reliable and precise motion where accuracy is critical.

Q: Where can I install the FSL 1204-100 actuator?

A: With multi-position mounting holes on its robust aluminum carriage and end supports, it can be installed on various machines and automation systems, accommodating diverse orientations and configurations.

Q: What is the load capacity and speed capability of this product?

A: It can support loads up to 15 kg (depending on speed and orientation) and can achieve travel speeds up to 300 mm/s, contingent on the stepper motor driver ratings.

Q: What certifications and transportation options are available for international buyers?

A: Each actuator is shipped from certified FOB ports with available quality documentation. Express shipping is offered to major export markets, facilitating fast and reliable delivery worldwide.
