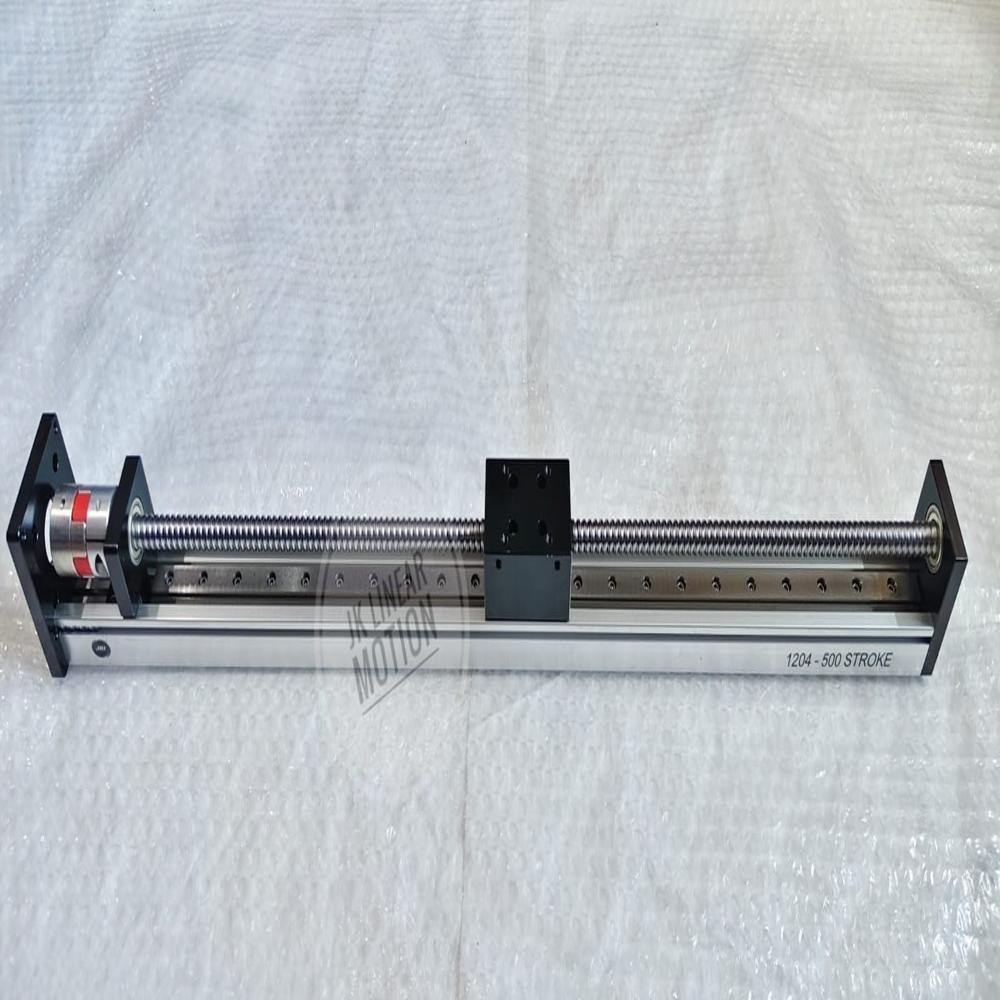

FSL 1204-500 STROKE WITHOUT MOTOR- JKL

FSL 1204-500 STROKE WITHOUT MOTOR- JKL
FSL 1204-500 STROKE WITHOUT MOTOR- JKL

FSL 1204-500 STROKE WITHOUT MOTOR- JKL Specification

  • Accuracy
  • High; typically 0.02 mm
  • Pressure
  • Not applicable; mechanical actuation via ball screw
  • Connection
  • NEMA 23 (57HS56-3004A-123) stepper motor interface
  • Function
  • Linear motion actuator for precise positioning and automation tasks
  • Size
  • 1204-500 mm stroke
  • Operating Voltage
  • Stepper motor typically 24-48V DC (depending on driver)
  • Guide Type
  • Linear rail with carriage block
  • End Support
  • Fixed-Fixed type bearing blocks
  • Stroke Length
  • 500 mm
  • Drive System
  • Precision ball screw
  • Repeatability
  • 0.02 mm
  • Lubrication
  • Pre-lubricated ball screw
  • Mounting
  • Multiple hole mounting on base and carriage
  • Construction Material
  • Aluminum alloy with steel ball screw
  • Load Capacity
  • Up to 30 kg (approx., varies with mounting orientation)
  • Motor Model
  • 57HS56-3004A-123
  • Model
  • FSL 1204-500
  • Ball Screw Diameter/Lead
  • 12 mm diameter, 4 mm lead (1204)
  • Motor Type
  • NEMA 23 Stepper Motor



About FSL 1204-500 STROKE WITHOUT MOTOR- JKL



Discover instant savings with the ravishing FSL 1204-500 WITH NEMA 23(57HS56-3004A-123) JKL, designed for uncommon precision in automation. Access this famed linear actuator, boasting an aluminum alloy build, steel ball screw, and enhanced motor interface. Its 500 mm stroke length, coupled with a 12 mm diameter, 4 mm lead ball screw, offers supreme repeatability (0.02 mm) and versatility. Experience reduced price and uncompromised performance for applications demanding reliability, heavy-duty 30 kg load capacity, and advanced mounting options. Elevate your automation projects effortlessly.

Superior Features and Commercial Versatility

FSL 1204-500 WITH NEMA 23(57HS56-3004A-123) JKL stands out in commercial automation tasks, enabling precise positioning and movement. Its high load capacity supports demanding manufacturing, robotics, and CNC applications. The robust construction and pre-lubricated ball screw ensure minimal maintenance and prolonged performance. Designed for high accuracy and enduring reliability, this actuator is favored in automated assembly lines, inspection systems, and precision machinery, delivering distinct advantages for industrial use.


Reliable Supply, Efficient Delivery Worldwide

With strong supply ability, the FSL 1204-500 WITH NEMA 23(57HS56-3004A-123) JKL is ready for global distribution. Orders are processed swiftly and shipped efficiently from the designated FOB port, optimizing logistics for timely delivery. Customers benefit from streamlined order processing and reliable delivery times, ensuring seamless integration into commercial projects. Our commitment guarantees the product arrives intact and on schedule for all automation needs.


FAQ's of FSL 1204-500 WITH NEMA 23(57HS56-3004A-123) JKL:


Q: How does the FSL 1204-500 WITH NEMA 23(57HS56-3004A-123) JKL benefit commercial automation systems?

A: This actuator offers high precision, substantial load capacity, and repeatable positioning, making it ideal for commercial automation such as manufacturing lines, robotics, and precision assembly tasks.

Q: What features make the FSL 1204-500 actuator uncommon among linear motion devices?

A: It features a robust aluminum alloy structure, pre-lubricated ball screw, multiple hole mounting, and a high-performance NEMA 23 stepper motor, giving it uncommon durability and accuracy.

Q: When can I expect my order to be shipped after processing?

A: Orders are typically shipped promptly after processing, with exact delivery times depending on logistics arrangements and the destination from the FOB port.

Q: Where is the FSL 1204-500 WITH NEMA 23 actuator commonly used?

A: It is used in various sectors such as industrial automation, CNC machinery, robotics, and automated inspection equipment due to its reliable performance.

Q: How should the actuator be mounted for optimal performance?

A: For optimal results, use the provided multiple hole mounting options on the base and carriage, ensuring a stable connection and alignment with your system.

Q: What is the process for connecting the NEMA 23 stepper motor?

A: Connect the 57HS56-3004A-123 model stepper motor using the standard stepper motor interface. Ensure the correct voltage supply (24-48V DC) and refer to the motor's wiring diagram for proper installation.
