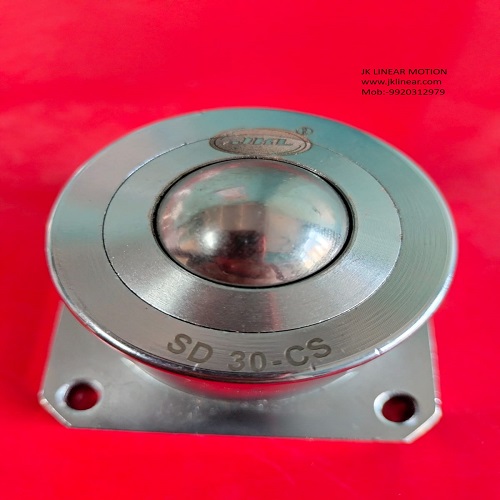

SD 30-CS BALL TRANSFER UNIT

SD 30-CS BALL TRANSFER UNIT Specification

Weight
Approx. 110 g

Thickness
17 mm

Material
Carbon Steel Body with Steel Ball (CS)

Ball Bearing Type
Precision Ball Transfer

Structure
Fixed Housing Ball Transfer Unit

Seals Type
Dust Cover

Number Of Rows
Single Row

Outside Diameter
30 mm

Load Capacity
30 kg

Main Ball Diameter
25.4 mm (1 inch)

Housing Finish
Zinc Plated

Height
26 mm

Installation Hole Center Distance
40 mm

Installation Hole Diameter
5.2 mm

Application
Material Handling, Conveyor System, Cargo and Warehouse Equipment

Corrosion Resistance
Yes

Operating Temperature Range
-20C to +60C

Mounting Type
Flange Mount

SD 30-CS BALL TRANSFER UNIT Trade Information

Minimum Order Quantity
10 Pieces

Delivery Time
7 Days

About SD 30-CS BALL TRANSFER UNIT

Presenting the SD 30-CS BALL TRANSFER UNIT, a commanding solution engineered for today's demanding material handling and conveyor applications. This latest unit features a dominant 25.4 mm main ball encased in a sturdy carbon steel body, designed with a precision ball bearing and a fixed, dust-covered structure for formidable performance. Zinc plating ensures corrosion resistance, while the flange mount allows effortless installation. With a load capacity of 30 kg and an operating range from -20C to +60C, this scarce yet highly sought-after unit is perfect for exporters, importers, suppliers, and manufacturers across India seeking reliable conveyor and warehouse equipment.

Commercial Applications & Versatile Sites of Use

The SD 30-CS BALL TRANSFER UNIT excels in rigorous commercial settings such as conveyor systems, cargo handling stations, and warehouse equipment. Its robust design and operational reliability make it ideal for material handling tasks where flawless movement and quick direction changes are crucial. Used extensively in industrial transport facilities, distribution centers, and manufacturing sites, it ensures efficient load transfer and handling, making it indispensable in enhancing workflow and productivity.

Payment Terms, Export Markets & Sample Offers

For transportation solutions and bulk requirements, competitive asking prices are offered, with flexible payment terms tailored to commercial needs-often including advance, partial, and post-dispatch payments. The SD 30-CS BALL TRANSFER UNIT is primarily exported across Asia, the Middle East, and Europe. To facilitate informed decisions, manufacturer samples are available upon request, ensuring product suitability prior to larger commitments. Customized offers can be furnished to meet specific client demands and order volumes.

FAQ's of SD 30-CS BALL TRANSFER UNIT:

Q: How is the SD 30-CS BALL TRANSFER UNIT typically installed?

A: The SD 30-CS BALL TRANSFER UNIT is mounted using a flange with installation holes of 5.2 mm diameter, spaced 40 mm apart, ensuring secure and stable attachment to various material handling surfaces.

Q: What benefits does the zinc-plated housing provide?

A: The zinc-plated housing offers excellent corrosion resistance, prolonging the lifespan of the unit in challenging environments like warehouses and cargo terminals.

Q: When is it ideal to use this ball transfer unit?

A: This unit is ideal for applications requiring smooth multidirectional movement, such as conveyor systems, warehousing, and cargo handling where rapid and safe material transfer is essential.

Q: Where can the SD 30-CS BALL TRANSFER UNIT be applied?

A: It can be used in industrial settings including conveyor lines, cargo loading systems, material handling equipment, and distribution centers requiring efficient load displacement.

Q: What is the process to obtain a sample before a bulk purchase?

A: Samples of the SD 30-CS BALL TRANSFER UNIT can be requested directly from the supplier, allowing you to assess its quality and compatibility with your systems prior to placing a bulk order.
