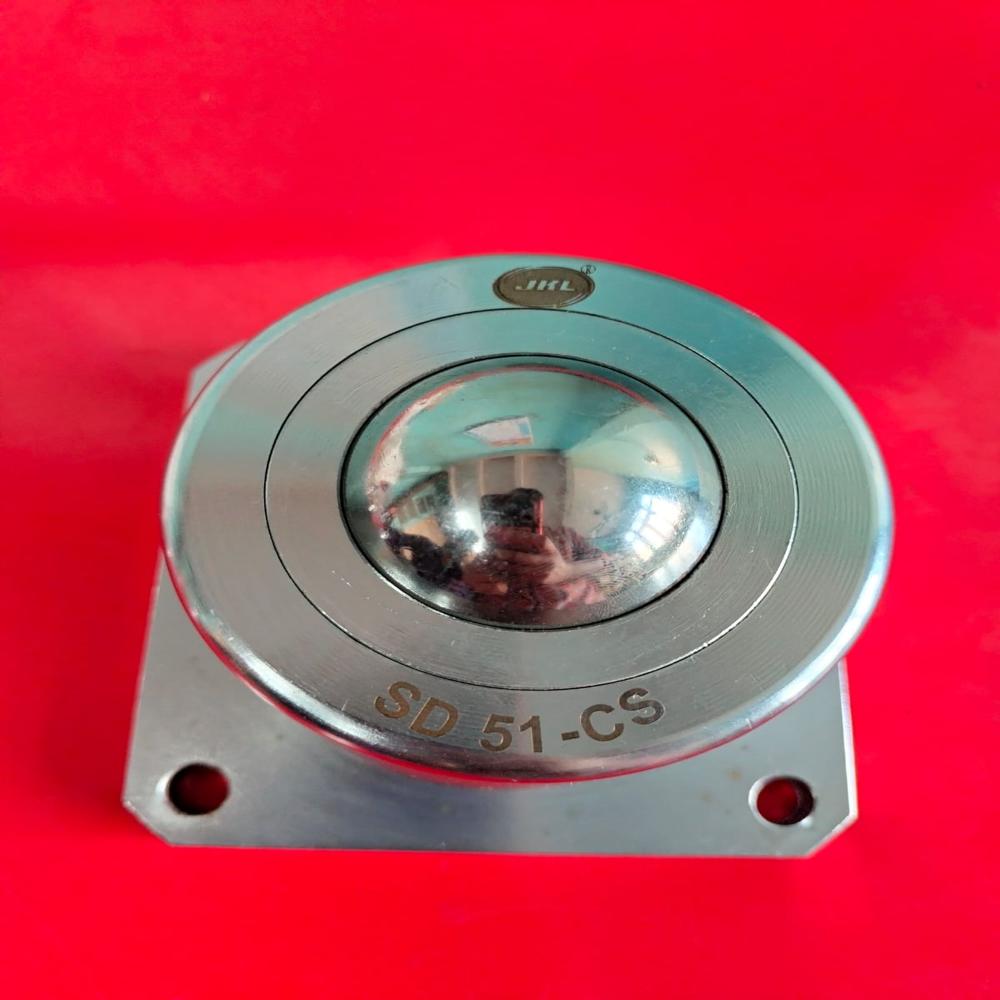

SD 51 CS-BALL TRANSFER UNIT

SD 51 CS-BALL TRANSFER UNIT Specification

Weight
Approx. 0.67 kg

Material
Carbon Steel (CS)

Ball Bearing Type
Integrated Steel Ball

Structure
Ball Transfer Unit

Seals Type
No Seal

Number Of Rows
Single Row

Bore Size
51 mm

Load Capacity
Up to 250 kg (approximate)

Inner Diameter
51 mm (Cup Diameter)

Operating Temperature Range
-20C to +100C

Surface Finish
Zinc Plated / Powder Coated

Application
Material handling, conveyor systems, cargo handling, assembly lines

Main Ball Diameter
50.8 mm (2 inches)

Mounting Holes
3 (Equidistant on flange)

Overall Height
Approximately 41 mm

Fixing Type
Flange Mounted

About SD 51 CS-BALL TRANSFER UNIT

Introducing the latest SD 51 CS-BALL TRANSFER UNIT-your new release for monumental performance in material handling. Crafted from unassailable carbon steel with a heroic load capacity of up to 250 kg, this unit features an integrated steel ball (main ball diameter: 50.8 mm), single-row construction, and no seals for ease of maintenance. The flange-mounted fixing (three equidistant mounting holes) ensures steadfast installation. Its zinc-plated or powder-coated finish resists harsh environments, while working reliably from -20C to +100C. Proudly offered by a leading exporter, importer, manufacturer, and supplier in India, the SD 51 is your trusted solution for conveyors, cargo, and assemblies-take advantage of superior movement and reliability.

Unrivaled Performance for Demanding Applications

The SD 51 CS-BALL TRANSFER UNIT is ideal for heroic tasks in material handling, conveyor systems, assembly lines, and cargo handling. This unit excels on flat, level surfaces and is best suited for steel or smooth wooden tables and platforms. The major advantage lies in its unassailable stability and remarkable durability, enhancing the efficiency of product movement while reducing manual effort. Its easy flange installation allows for quick deployment wherever seamless multidirectional movement is required.

Delivery, Export Scope & Packaging: Everything You Need to Know

The SD 51 CS-BALL TRANSFER UNIT is ready for prompt handover upon confirmed order. Our principal export markets span globally, with strong exchanges in regions demanding robust industrial components. Packaging is meticulously handled, using secure cartons or wooden crates to ensure safe transit. Feel free to inquire about the asking price and volume discounts for your projects. As a trusted exporter, we ensure your operations receive timely and reliable support, every time.

FAQ's of SD 51 CS-BALL TRANSFER UNIT:

Q: How is the SD 51 CS-BALL TRANSFER UNIT typically used in material handling?

A: This unit is used to enable smooth, multidirectional movement of heavy loads on conveyor systems, cargo handling zones, and assembly lines, making product transfer efficient and effortless.

Q: What are the main benefits of choosing this ball transfer unit?

A: The SD 51 provides unassailable reliability, robust load capacity up to 250 kg, efficient directional flexibility, and a corrosion-resistant finish, ensuring longevity even under challenging industrial conditions.

Q: Where can the SD 51 CS-BALL TRANSFER UNIT be installed?

A: It can be installed on flat surfaces such as conveyor tables, cargo platforms, and assembly stations, with flange mounting secured by three equidistant bolts for sturdy placement.

Q: What is the process for exchanging or ordering this unit?

A: Simply contact us with your requirements, and we will guide you through order placement, provide the asking price, and organize a prompt handover through secure packaging and reliable logistics.

Q: When should you consider replacing your existing transfer units with the latest SD 51 model?

A: Upgrade when you need increased load capacity, enhanced durability, or to take advantage of the latest advancements in component performance and corrosion resistance.
