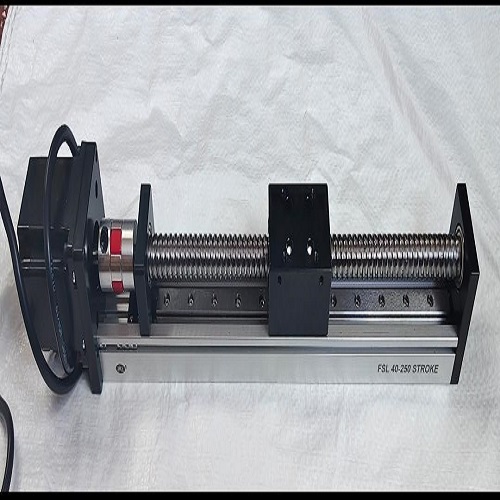

FSL 1610-250 STROKE WITH NEMA 23 (57HS56-3004A-123)JKL

FSL 1610-250 STROKE WITH NEMA 23 (57HS56-3004A-123)JKL Specification

Connection
Direct NEMA 23 Stepper Motor Coupling (Model: 57HS56-3004A-123)

Accuracy
0.05 mm

Pressure
Not applicable (electric drive system)

Function
Linear motion system for precise positioning and automation tasks

Size
Lead Screw 16 mm diameter, 10 mm pitch, 250 mm stroke length

Ambient Temperature
-10C to 50C

Lubrication
Pre-lubricated for smooth operation

Motor Type
NEMA 23 Stepper Motor

Travel Speed
Up to 200 mm/s (application dependent)

Encoder
Optional (not included by default)

Motor Model
57HS56-3004A-123

Protection
Open frame, no IP rating

Lead Screw Type
Trapezoidal T16x10

Rated Current
3.0A/phase

Step Angle
1.8 per step

Voltage
3.6V

Duty Cycle
Continuous/Intermittent

Holding Torque
1.9 Nm

Mounting
Aluminum carriage platform with mounting holes

Material
Anodized aluminum rail, steel screw

FSL 1610-250 STROKE WITH NEMA 23 (57HS56-3004A-123)JKL Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

About FSL 1610-250 STROKE WITH NEMA 23 (57HS56-3004A-123)JKL

Introducing the FSL 1610-250 STROKE WITH NEMA 23 (57HS56-3004A-123)JKL-a trending and prime solution for remarkable linear motion precision. Designed for automation, this best-in-class system delivers a sizzling performance with its 1.9 Nm holding torque, 3.0A/phase current, and rapid travel speed up to 200 mm/s (dependant on application). The stellar anodized aluminum rail, steel trapezoidal lead screw (T16x10), and direct NEMA 23 stepper coupling set the benchmark for durability and accuracy. Seize promotion-ready excellence for all your precise positioning needs!

Superior Features & Application Range

The FSL 1610-250 STROKE WITH NEMA 23 (57HS56-3004A-123)JKL is remarked for its pre-lubricated system, ensuring extended smooth operation. Its robust anodized aluminum rail and precise 0.05 mm accuracy cater to an array of surfaces, from industrial automation setups to laboratory environments. Additional uses span CNC machines, 3D printing assemblies, and precise robotic positioning, making it a versatile asset across numerous demanding applications.

Packaging, Domestic Markets & Shipping Details

Outlay for the FSL 1610-250 includes secure packaging-anodized aluminum and steel components are shipped with protective layering to prevent transit damage. The main domestic mar covers all major industrial hubs within the country, ensuring prompt availability. FOB port services are available, supporting exporters, importers, manufacturers, and suppliers looking for reliable shipping partnerships and timely deliveries.

FAQ's of FSL 1610-250 STROKE WITH NEMA 23 (57HS56-3004A-123)JKL:

Q: How does the FSL 1610-250 STROKE WITH NEMA 23 ensure precision in motion tasks?

A: The system features a NEMA 23 stepper motor, precise trapezoidal T16x10 lead screw, and 0.05 mm accuracy, providing consistent and reliable linear positioning for automation and positioning applications.

Q: What are the recommended application surfaces for this linear motion system?

A: It is suited for rigid, stable industrial and laboratory platforms, including CNC setups, robotic assemblies, and 3D printing environments requiring precise, repeatable movement.

Q: When should users consider optional encoders?

A: Optional encoders are ideal when additional feedback is required for closed-loop control or enhanced positional accuracy in complex or critical automation processes.

Q: Where is the main domestic market for this product?

A: The product is primarily distributed across industrial hubs within the country, catering to exporters, importers, manufacturers, and suppliers seeking high-performance automation solutions.

Q: What is the packaging process for the FSL 1610-250 system?

A: Components are securely packaged with protective materials to prevent damage during transit, ensuring the product arrives ready for immediate installation.
